IP20 FTTB FTTX Fiber Optic Terminal Box Optical Fiber Socket Panel

Name: IP20 FTTB FTTX Fiber Optic Terminal Box Optical Fiber Socket Panel
Brand: DYS/OEM
Price: 1 USD

Quality IP20 FTTB FTTX Fiber Optic Terminal Box Optical Fiber Socket Panel wholesale

Brand Name : DYS/OEM

Model Number : FTTH - 016

Certification : IS0 9001 2015.ROHS

Place of Origin : Fiber optic Access Terminal box

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C,T/T

Supply Ability : 500000PCS / Month

Delivery Time : 3-5 work days

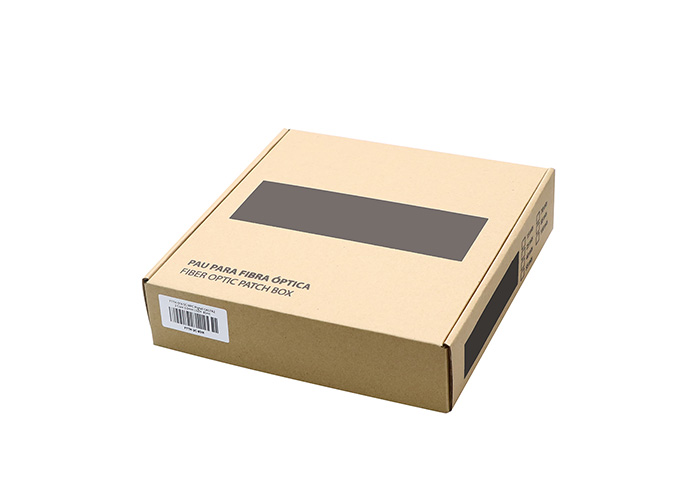

Packaging Details : Individual box or according to customer's request

Use : FTTH

Adaptor ports : 2

Adapter type : SC Simplex

Application : (Data Center), FTTH FTTB FTTX Network

Adapter type and count : 2 SC/SX or 2 LC/DX

Fiber Port : 2

Material : ABS

Fiber Type : SM&MM

Contact Now

IP20 FTTB FTTX Fiber Optic Terminal Box Optical Fiber Socket Panel

FTTH Indoor 86 Type optical fiber distribution box Optical Fiber Socket Panel

Item	fiber optic termination FTTH box
Dimension(L×W×H)mm	8010023
Applicable Environment	Indoor
Installation	Wall mounting
Cable entries	Supportting uncut
Core	2 core
Adapter type	SC adapter or LC duplex
Splice capacity	IP20
Material	ABS

Specification
Scope of application:3.0*2.0mm drop cable or indoor cable
Fiber Cladding diameter:125um(G652&G657)
Fiber diameter:250um&900um
Fiber Type:SM&MM
Tensil Strength:More than 50N
Operation Temperature:-40-+85
Connecting Adapter:SC&LC
Insertion Loss:Less than 0.2dB
Return Loss:More than 50dB(UPC),More than 60dB(UPC)

IP20 FTTB FTTX Fiber Optic Terminal Box Optical Fiber Socket Panel

fiber optic termination FTTH box
Dimension(L×W×H)mm	1008029
Applicable Environment	Indoor
Installation	Wall mounting
Cable entries	Supportting uncut
Core	4 core
Adapter type	SC adapter or LC duplex
Protection Level	IP20
Material	ABS
