ST Low Insertion Loss Fiber Optic Patch Cord For Telecom / CATV Systems

Name: ST Low Insertion Loss Fiber Optic Patch Cord For Telecom CATV Systems
Brand: DYS/OEM
Price: 1 USD

Quality ST Low Insertion Loss Fiber Optic Patch Cord For Telecom / CATV Systems wholesale

Place of Origin : shenzhen

Brand Name : DYS/OEM

Certification : IS09001-2015.ROHS

Model Number : ST Optical Fiber Patch Cord

MOQ : Negotiable

Price : Negotiable

Packaging Details : Individual box or according to customer's request

Delivery Time : 3-5 work days

Payment Terms : T/T or L/C,Western Union or Paypal

Supply Ability : 500000PCS / Month

Contact Now

ST Low Insertion Loss Fiber Optic Patch Cord For Telecom / CATV Systems

Quick Detail:

Model Number: ST

Model Name: ST

Fiber Type: SM

Inserion Loss: <0.2db

Return Loss: >45db

Length: Customize

Features

1.Price-Competitive

2.Low Insertion Loss & PDL

3.Factory-terminated and Tested

4.Fiber Options: G.652 /G.657/OM1/OM2/OM3 and PM Panda Fiber

5.Connector Options: FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTP

6.Polishing Options: PC/UPC/APC

7.Feature Connector with Ceramic Ferrules

Applications

1.Access Network

2.Telecom/CATV Systems

3.FTTX

Specifications

Parameters	Standard Fiber Cable Assemblies
Fiber Type	SM(G.652/G.657A)	MM(OM1/OM2/OM3)
Jacket Materials	LSZH/OFNR/PVC
Connector Type	SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm	850±30/1300±30nm
Insertion Losss(dB) TIA/EIA-455-107	≤ 0.3dB (PC/UPC/APC)	≤ 0.3dB (PC/UPC)
Return Loss(dB) TIA/EIA-455-107	≥45dB(PC/UPC) ≥55dB(APC)	≥35dB(PC/UPC)
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C)	-10~ + 70
Storage Temperature (° C)	-40 ~ +85
Package	1unit/bag

ST Low Insertion Loss Fiber Optic Patch Cord For Telecom / CATV Systems

Competitive Advantage

DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.

Product Tags:

fiber optic jumper

multimode fiber optic cable

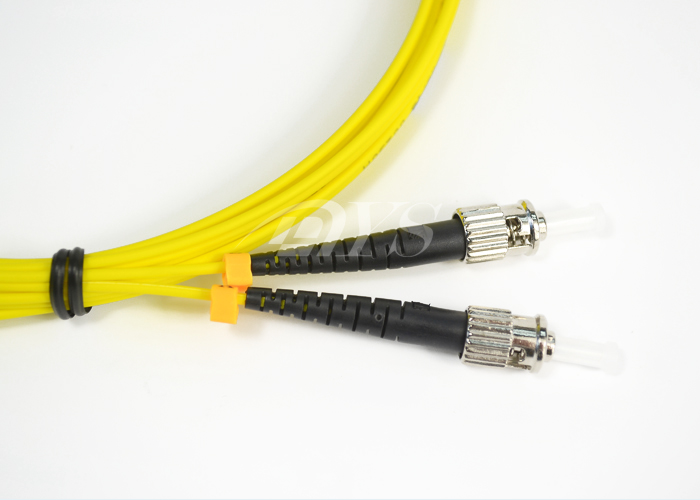

ST Low Insertion Loss Fiber Optic Patch Cord For Telecom / CATV Systems Images
