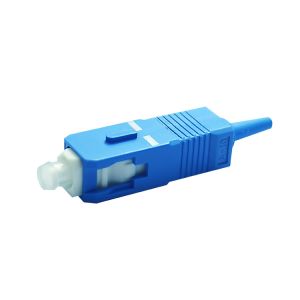

SC/UPC Fiber Optics Connectors

SC/UPC Fiber Optics Connectors

Quick Detail:

Model Number: SC

Insertion loss: <0.3dB (Max 0.5)

Return loss: >40dB

factory: yes

1. Application:

- Optical Distribution Frame

- Optical Network Equipments

- FTTH,CATV...

2. Features:

1) Superior qualified standard polishing;
2) 100% optic test: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2 (UPC); ≤0.3 (SPC);

3) 100% optic test: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC); ≥50 (SPC);

4) φ0.9mm, φ2.0mm, φ3.0mm cable optional

5) Simplex and duplex connector available;

6) Good exchange ability and good durability;

7) Available in fiber bunch, ribbon fan-out, pigtail available;

8) Meets ISO9001, ROHS and Bell core GR 326-core standards;

9) Customized specifications are welcomed.

2. Applications:

1) CATV, metro test equipment; FTTH;

2) Telecommunication networks;

3) Local area networks (LAN);

4) Wide area networks (WAN);

5) Premise installations;

6) Data processing networks;

7) Video and military active device termination.

8) Optical Distribution Frame

9)Optical Network Equipments

Competitive Advantage

DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.
