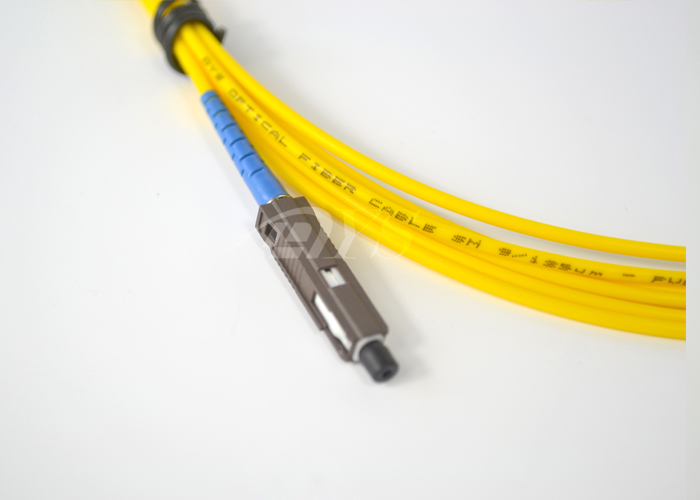

FC/APC-MU/UPC Simplex Fiber Optic Patch Cord
Quick Details:
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: DYS/OEM
- Model Number:FC/APC-MU/UPC
- Inserion Loss: <0.2db
- Return Loss: >45db
- Length: Customize
- Certifaction: ISO9001, ROHS
Applications:
1. Access Network
2. Telecom/CATV Systems
3. FTTX/FTTH/FTTA
Specifications:
| Parameters | Standard Fiber Cable Assemblies |
| Fiber Type | SM(G.652/G.657A) | MM(OM1/OM2/OM3) |
| Jacket Materials | LSZH/OFNR/PVC |
| Connector Type | SC/LC/ST/LC/MU/MTRJ/MPO/E2000 |
| Ferrule Materials | Ceramic |
| Testing Wavelengths | 1310±30/1550±30nm | 850±30/1300±30nm |
| Insertion Losss(dB)
TIA/EIA-455-107 | ≤ 0.3dB
(PC/UPC/APC) | ≤ 0.3dB
(PC/UPC) |
| Return Loss(dB)
TIA/EIA-455-107 | ≥45dB(PC/UPC)
≥55dB(APC) | ≥35dB(PC/UPC) |
| Exchangeability | ≤ 0.2dB |
| Cable Assemblies | Pigtail/Simplex/Duplex/Fan-out Patchcord |
| Operating Temperature (° C) | -10~ + 70 |
| Storage Temperature (° C) | -40 ~ +85 |
| Package | 1unit/bag |
About Us:
Shenzhen DYS Fiber Optic Technology is a leading company in developing and manufacturing advanced fiber optic products,mainly offer fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. DYS win the the honorary title of National High-tech enterprise by Shenzhen government in 2014.
With years of experiences in the fiber optic industry, our factory is fully equipped over 3500 square meters and more than 18 non dust production lines .About 200 well-trained staff and engineers are contributing to our proud products. We have 4 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 8 production lines for standard jumper and 4 PLC Splitter production lines.
The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on.
All of our optical products are RoHS compliant and DYS also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, DYS fiber optic is looking forward to cooperate with you.
