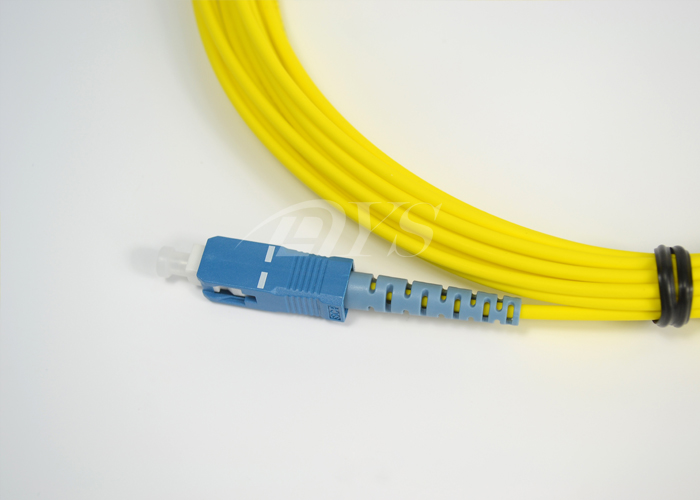

SC-SC/ APC Simplex Singlemode Optical Fiber Patch Cord Compliant With ANSI, NTT SC Standard

Name: SCSC APC Simplex Singlemode Optical Fiber Patch Cord Compliant With ANSI NTT SC Standard
Brand: DYS/OEM
Price: 1 USD

Quality SC-SC/ APC Simplex Singlemode Optical Fiber Patch Cord Compliant With ANSI, NTT SC Standard wholesale

Place of Origin : shenzhen

Brand Name : DYS/OEM

Certification : IS09001-2015.ROHS

Model Number : SC-SC/APC Duplex fiber optic patch cord

MOQ : Negotiable

Price : Negotiable

Packaging Details : 1pcs/zip bag

Delivery Time : 3-5 work days

Payment Terms : T/T or LC

Supply Ability : 1000PCS/Day

Fiber type : Simplex and Duplex

Application : FTTH FTTB FTTX Network

Connector type : SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO

Length : 1m 2m 3m or Customized

Product name : Fiber Optic Patch Cord

Color : aqua or Cusomized

Contact Now

SC-SC/ APC Simplex Singlemode Optical Fiber Patch Cord Compliant With ANSI, NTT SC Standard

Quick Details

Brand Name: DYS
Model Number: SC-SC/ APC Simplex
Mode: Singlemode
Insertion Loss≤0.2 dB
Return Loss(dB)>50;>60
Exchangeability(dB)≤0.2
Operating Temperature(°C):-30 ~ +75
Storage Temperature (°C):-40 ~ +85

Specification:

Mode	Singlemode
Type	SC-SC/APC
Polishing	PC/UPC/APC
Insertion Loss(dB)	<0.2
Return Loss(dB)	>50;>60
Exchangeability(dB)	≤0.2
Repeatability(db/1000times)	≤0.2

Operating Temperature(°C)	-30 ~ +75
Storage Temperature (°C)	-40 ~ +85
Cable OD(mm)	3.0
Cable Material	OFNR,LSZH&Polarization maintaining…

Application:

1. Telecommunications & Data communications
2. LAN(including FTTH and FTTD)
3. Componenttermination
4. CATV ,Network ,WAN

Compliant with ANSI, Bellcore, TIA/EIA, IEC Standards
Meet NTT SC Standard
Low Insertion Loss and High Return Loss
Pull-proof Design
2.5mm Japanese-made Ceramic Ferrules
Simplex or Duplex Configuration


Competitive Advantage
DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, products exported to Europe and the United States and Southeast Asian countries.
