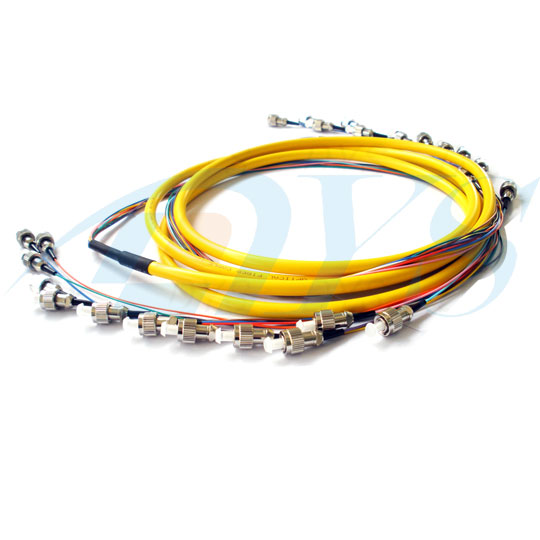

FC / UPC 12 Color Bundle Fiber Optic Patch Cord 0.9mm Single Mode Stable Capability

Name: FC UPC 12 Color Bundle Fiber Optic Patch Cord 09mm Single Mode Stable Capability
Brand: DYS/OEM
Price: 1 USD

Place of Origin : shenzhen

Brand Name : DYS/OEM

Certification : IS09001-2015.ROHS

Model Number : FC 12C-B-SM-0.9mm

Mode : Single-mode or Multi-mode

Insert loss : ≤0.2dB

Suitcable fiber : 9/125μm,50/125μm,62.5/125μm

MOQ : Negotiable

Packaging Details : 1pcs in 1 packign or Customized

Delivery Time : 2-5 days

Payment Terms : T/T or L/C,Western Union,Paypal

Supply Ability : 500000PCS / Month

Price : Negotiable

Contact Now

FC / UPC 12 Color Bundle Fiber Optic Patch Cord 0.9mm Single Mode Stable Capability

Quick Details

Brand Name: DYS

Model Number: FC / UPC 12 Color

Mode: Singlemode

Insertion Loss≤0.5 dB

Repeatability≦0.1

Features
* Low insertion loss value
* High back reflection loss value
* Stable capability and high reliability
* Precis connector
* Excellent mechanical capability
* Boots in a variety of colors

Specifications

Item	Single Mode	Multi Mode
Insertion Loss	≦0.2dB	≦0.3bB
Return Loss	PC≥50dB, UPC≥55dB, APC≥60dB
Insert-pull Test	1000 times
Repeatability	≦0.1
Tensile strength	≥10kg
Operating Temperature	-40°C ~ +85°C
Ceramic Ferrule Specification	125.5um concentricity deviations: ≦1um	127um concentricity deviations: ≦3um
Suitable Fiber	9/125um	50/125um, 62.5/125um

Applications
* CATV
* Telecom network
* Optical test equipment
* Local area networks
* Wide area networks
* Data processing Networks
FC / UPC 12 Color Bundle Fiber Optic Patch Cord 0.9mm Single Mode Stable Capability

Competitive Advantage

DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, products exported to Europe and the United States and Southeast Asian countries.

Certificate of qualification
