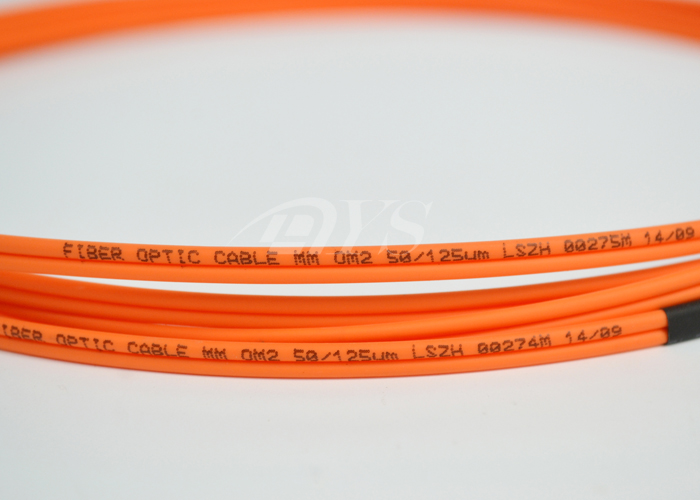

SC/UPC-MU/UPC Optical Fiber Patch Cord Multimode Duolex 50/125 OM2

Name: SCUPCMUUPC Optical Fiber Patch Cord Multimode Duolex 50125 OM2
Brand: DYS/OEM
Price: 1 USD

Quality SC/UPC-MU/UPC Optical Fiber Patch Cord Multimode Duolex 50/125 OM2 wholesale

Place of Origin : shenzhen

Brand Name : DYS/OEM

Certification : IS09001-2015.ROHS

Model Number : SC-MU

Mode : Single-mode or Multi-mode

Connector : SC,FC,ST,LC,MU,E200,MPO

Insert loss : ≤0.2dB

Suitcable fiber : 9/125μm,50/125μm,62.5/125μm

MOQ : Negotiable

Packaging Details : 1pcs in 1 packign or Customized

Delivery Time : 2days

Payment Terms : T/T or L/C,Western Union

Supply Ability : 500000PCS / Month

Price : Negotiable

Contact Now

SC/UPC-MU/UPC Optical Fiber Patch Cord Multimode Duolex 50/125 OM2

Quick Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: DYS/OEM
Model Number: SC-MU
Inserion Loss: <0.2db
Return Loss: >45db
Color: Yellow
Length: Customize
Certifaction: ISO9001, ROHS

Applications:
1.Access Network

2.Telecom/CATV Systems

3.FTTX/FTTH/FTTA

Specifications:

Parameters	Standard Fiber Cable Assemblies
Fiber Type	SM(G.652/G.657A)	MM(OM1/OM2/OM3)
Jacket Materials	LSZH/OFNR/PVC
Connector Type	SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm	850±30/1300±30nm
Insertion Losss(dB) TIA/EIA-455-107	≤ 0.3dB (PC/UPC/APC)	≤ 0.3dB (PC/UPC)
Return Loss(dB) TIA/EIA-455-107	≥45dB(PC/UPC) ≥55dB(APC)	≥35dB(PC/UPC)
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C)	-10~ + 70
Storage Temperature (° C)	-40 ~ +85
Package	1unit/bag

SC/UPC-MU/UPC Optical Fiber Patch Cord Multimode Duolex 50/125 OM2

Competitive Advantage:
DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; And good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.
